Processor / Chipset |

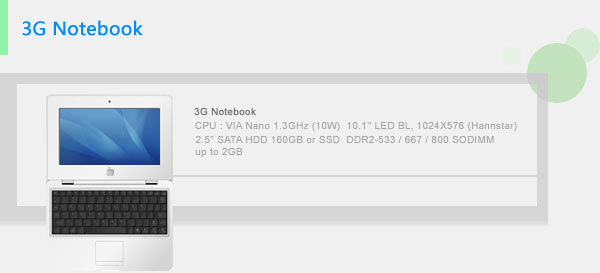

CPU : VIA Nano 1,3GHz (10W)
CHIPSET : VIA VX855 (2,3W) |
|
BIOS (HW) |
SPI ROM for BIOS & EC |
|
LCD |
10,1" LED BL, 1024×576 (Hannstar) |
|
Graphic |
Embedded |
UMA (VIA Chrome9 HC3) |
|
Dynamic Memory |
RAM |
DDR2-533 / 667 / 800 SODIMM
One Slot / SODIMM
up to 2GB |
|
Internal Storage |
2,5" SATA HDD 40 ~ 160GB or SSD 16/32/64GB |
|
Removable Storage |
Support SD/SDHC/MMC |
|
Operating System |
Windows XP(Home), Linux(Canonical/Ubuntu 8.04) support
kernel 2.6xx (depends on Customers) |
|
Language Support |
OSD |
Depends on Customer |
|
System Font |
Depends on Customer |
|
Safety |
3C, CE, ROHS, FCC, UL, CB
Australians C-Tic necessary
Rest by request |
|
Wireless |
BT |
BT (EDR2.0, DUN, PAN, A2DP + AVRCP), USB Interface |
|
WiFi |
VT6656, 802.11b / g |
|
Mobile Network |
3.5G HSDPA, USB Dongle
|
|
Battery |
18650 3,6~3,7V (2200-2300mAh)
24Wh (3S1P) / 10,8V (3,6V × 2,2AH × 3 cells) Default
48Wh (3S2P) / 10,8V (3,6V × 2,2AH × 6 cells) |
|
Power Management |
ACPI V2.0 |
|
ACPI S0,S1,S3,S4,S5 support |
|
Audio |
VT1702S
|
|
Camera |
0,3M / 1,3M pixels (USB interface) |
|
Microphone |
MIC build in |
|
Microphone Jack |
Yes |
|
Earphone Jack |
Yes |
|
Speaker |
1,5W ×2 |
|
LAN |
RJ45 10M/100M |
|
Keyboard Area |
Qwerty Keyboard, Multi-national Language Support |
|
Touch Pad Area |
Synaptics Integrated Touch pad, Left key, Right Key |
|
Miscellaneous |
Lock |
YES |
|
Button Key |
POWER |
YES |
|
RF |
YES |
|
Function Key |
BT ON/OFF |
|
WIFI ON/OFF |
|
CCD ON/OFF |
|
DISPLAY ON/OFF |
Dual Display switch (LCD/monitor/LCD+monitor) with OSD
indicator |
|
Brightness Adjustment |
|
Brightness Adjustment |
|
MUTE |
|
Sleep/Standby |
|
Volume adjustment |
|
Volume adjustment |
|
System Function LED |
POWER ON LED |
Dual color LED indicator for AC power adapter in with
Battery Charging |
|
WIFI Activity |
|
BT Activity |
|
Number Lock |
|
Caps Lock |
|
HDD active |
|
Sleep |
|
I/O Port |
Display Port |
1 VGA port |
USB Port
(Type A)
|
3× USB2.0 TYPE A PORTS
USB [0,1,2] Shall be external port. These port shall have
individual power controls.
USB [3,4,5] Used in this design for internal device. |
|
Microphone Jack |
MIC in 3,5 mm Jack |
|
Earphone Jack |
Audio output 3,5 mm Jack |
|
LAN Jack |
Yes |
|
DC IN Jack |
Yes |
|
Card Slot |
Card reader (SD/SDHC/MMC) |
|
EC |
Yes (ITE8052) |
|
Operation temperature |
0~+50 °C Relative Humidity : 10~85% |
|
Storage temperature |
−20 ~ +70 °C Relative Humidity : 95% |
|
Dimension |
? |
|
Weight |
? |
|
Target BOM |
? |
|
